Galvanised Chain Link Fence Privacy Screen Fabric Rolls 900MM X 50MM X 2.5MMx25M
Chain Link Fence Fabric is the fastest and most cost effective fence products on the market today.
Chain Link Fence Rolls Basis Information
- Wire Dia:0.5mm-5.0mm
- Mesh size: 1 inch, 1.5 inch, 2 inch, 2.25 inch, 2.4 inch, 2.5 inch , 3 inch, 4 inch
- Width:0.9m - 2.5m
- Length:10m, 20m, 25m, 30m or 50m
- Color: green, white, black etc
Chain Link Fence Rolls Standards
Type 1 – Zinc-Coated Steel Chain Link Fence Fabric Characteristics
| Nomi al Coated Wire Diameter | Allowable Variance | Zinc Coating Weight, min. | Breaking Strength, minimum |
| Class 1 | Class 2 |
| Gage | Inch | mm | Inch | mm | Oz/ft² | g/m² | Oz/ft² | g/m² | lbf | Newtons |
| 6 | 0.192 | 4.88 | ±0.005 | ±0.13 | 1.2 | 366 | 2.00 | 6.10 | 2,170 | 9,650 |
| 9 | 0.148 | 3.76 | ±0.005 | ±0.13 | 1.2 | 366 | 2.00 | 6.10 | 1,290 | 5,740 |
| 11 | 0.120 | 3.05 | ±0.005 | ±0.13 | 1.2 | 366 | --- | --- | 850 | 3,780 |
Table 2
| Recommended Use | Mesh Sizes Available | Nominal Coated Wire Size, gage | Height of Fence Fabric inch |
| Inch |
| Industrial/Commercial | 2” | 6 | 36” – 144” |
| 9 | 36” – 144” |
| 11 | 36” – 144” |
| Industrial/Security | 1” | 6 | 36” – 144” |
| 9 | 36” – 144” |
|
Security | 1” | 9 | 36” – 144” |
| 1” | 11 | 36” – 144” |
| 3/4" | 9 | 36” – 144” |
| 3/4" | 11 | 36” – 144” |
| 5/8” | 9 | 36” – 144” |
| 5/8” | 11 | 36” – 144” |
| 1/2" | 9 | 36” – 144” |
| 1/2" | 11 | 36” – 144” |
| 3/8” | 11 | 36” – 144” |
| Tennis Court | 1 3/4" | 9 | 36” – 144” |
| 11 | 36” – 144” |
Chain Link Fence Rolls Notes to tables
(1) Breaking strength (table 1) based on a minimum tensile strength of 75,000 psi.
(2) Fabric with mesh size less than 1" is galvanized before weaving.
(3) Chain-link fabric shall be furnished in the standard heights shown in Table 2. Custom order fabric is available in heights to and including 20ʼ.
As a professional chain link fence manufacturer, we can supply you high quality products. Welcome to contact!
Chain Link Fence Rolls Package
- Fence Panel: Plastic film for every piece in bulk or Wooden/Metal Pallet
- Fence Post:Plastic film + Wooden/Metal Pallet
- Accessories: In woven bags or Cardboard boxes

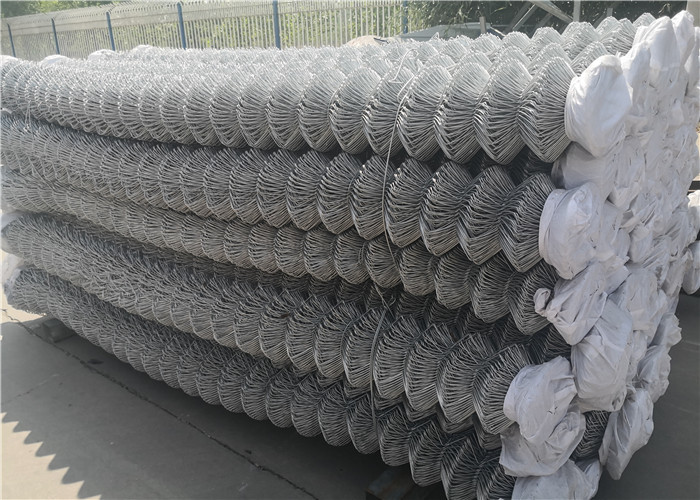

- Chain link fence fabric 900MMx25M Roll Image
Chain link fence fabric Installation Image
